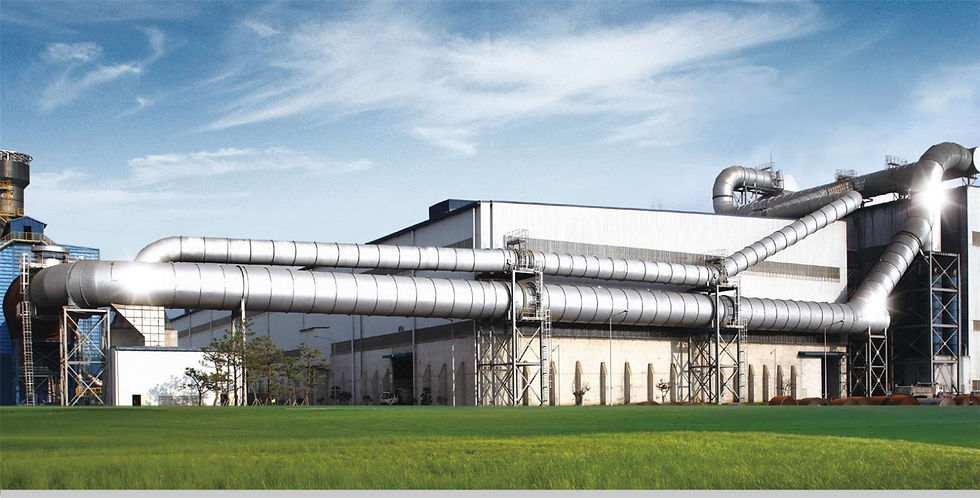

IMT2735 - Hot Strip Mill 1650 mm & Electric Arc Furnace x2 160 ton
Electric Arc Furnace
Type AC Consteel, EBT Capacity 160 Ton / Heat (2 Units) Transformer 140 MVA (2 Units) Electrode ARM Size 28 Inch, Conducive ARM : Cupper Furnace Dia. 7.700 mm Oxygen Injector 2400 Nm3 /hr. x 4 ea Carbon Injector 50 Kg / min. x 2ea C/O2 Injoctor 3,700 Nm3 / hr. , 45 Kg / min. x 1ea Lime Injectot 200 Kg / min. x 1ea Laddle Furnace
Transformer 34MVA Electrode ARM Size 18 Inch Temperature Rising 4.5°C / min. VD-OB Twin station Continuous Caster
Type Vertical Curved Caster, 2 Units Radius 5,000 mm Slab Size 70, 85 mm x 900~1,650 mm Casting speed 70 mm Slab : 6.0 m/min.
85 mm Slab : 4.6m/min.
Mould Length 1,200 mm Strand Segments : 9ea Dummy Bar Bottom Feeding 85mm (T) x 1,335mm (W) x 10,100mm (L) Ladle Turret 160 Ton (Max. 190 Ton) Tundish 38 Ton (Max. 42 Ton) Tundish Car Moving Speed : 2 m~20 m/min.
Lifting Speed : 300 m/min.
Oscillator Frequency 0~450 Cycle / min.
Stoke : 0~10 mm
Shear Pendulum Type,
Max. Capacity : 13,000 KN,
Knife Length : 1,900 mm
Hot Rolling Mill (Mitaubishi)
Type Pair Cross Type Product Size 1.2 mmT~16 mmT x 900 mm ~1,650 mm x Max. 30 Ton Product Capacity 2.5 Million Ton / year Tunnel Furnace 505 Ton A Line : 219.25 m, B Line : 176.8 m,
Shuttle Ferry Type Slab Size : 70 mmT / 85 mmT x 900Wmm / 1,650 Wmm
Fuel : LNG
Length : A-219.25 m, B-176.8 m, Out Put Temp.: 1,150°C
Coil Dia. Roll dia. : 580 mm ~ 640 mm Roll Shop Buck Up Roll grinder : 1 unit,
Work Roll Grinder : 3 Unit
Water Treatment Facility
Pump 228 Unit Filter 46 Unit Cooling Tower 13 Sets Substation
Transformer 154 KV / 3,3 K,
220 MVA (2 Unit),
200 MVA (1 Unit)
Generator 6,6 KV / 2,500 KVA (2 Unit)
