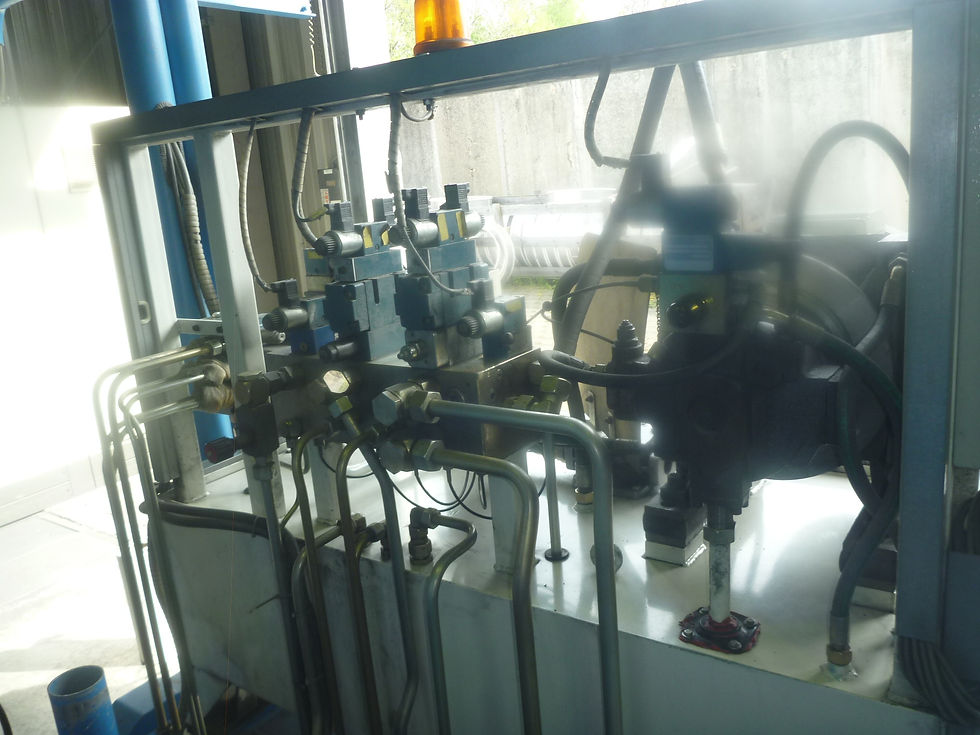

IMT2733 - Schleifstein Hydraulic Dishing Press Cap. 400T
Brand : Schleifstein
Model : RHP400/5 CLYom : 2001
Technical Data of the Press
Max. Pressure 4000 kN Max. Retraction Force 347 kN Rapid Motion Downwards 250 mm/sec Pressing Motion Downwards 26.2 – 16 mm/sec Idling Stroke Upwards 300 mm/sec Maximum Working Pressure 251 bar Clear Width of Frame 5000 mm Dimensions of Standard Table Plate 1200 x 1200 mm Dimensions of Ram Clamping Plate Ø 800 mm Press Frame Manufactured In Two Parts Max. Plate Thickness To Be Dished Recommended, with Big Ø 1400mm Die a) With Boiler Plate about 26 mm
b) with Stainless Steel about 19 mm
Max. Diameter of the Flat Round 4900 mm Installed Power 75 kW Service Voltage (Supposed) 3x 400 V, 50 Hz,N,PE
Control Voltage 24 V DC
Valve Voltage 24 V DC
Weight of the Press 30.000 Kg Technical Data of the Manipulator
Manipulator
VMB 4926CL Yom
2001 Max. Dimensions of The Flat Round or
Ø 4900 x 26mm Max. Allowed Weight of Workpiece
4000 Kg Min. Diameter of The Flat Round
With Table Size 1200 x 1200 mm (Standard) 1950 mm
With Table Size 700 x 700 mm (Optional) 1300 mm
Installed Power
18 kW Service Voltage (Supposed)
3x 400V, 50 Hz,N,PE Control Voltage 24 V DC Valve Voltage 24 V DC Weight of the Manipulator 13.500 Kg
